Product Details:
|
| Product Name: | RO Drinking Water System / Water Treatment Machine | Filter Material: | SUS304 Or FRP |
|---|---|---|---|
| Feed Water: | Tap Water , Well Water , River Water | Feed Water Presure: | 0.2-0.4Mpa |
| Technology: | 3 Stage Filters+RO+UV+ozone | Pump: | CNP Or Grundfos |
| Contral System: | PLC+HMI Auto And Manual | Voltage: | 220V / 380Vm 50 / 60hz |
| Certification: | ISO 9001:2008 | Warranty: | One Year For Reveres Omosis System |
| Highlight: | reverse osmosis water treatment equipment,reverse osmosis water treatment plant |
||
Ozone UV Reverse Osmosis RO Drinking Water System / Water Treatment Machine
Introduction
Customized reverse osmosis RO drinking water system / water treatment machine is for producing drinking water, foods factory, beverage factory, fruit& vegetable factory etc. The machine is integrated one, user can just connect the inlet water and outlet water, rejected water pipeline to our ro water treatment machine, the assembly and transportation are rather convenient.
Features and advantages
Single pass reverse osmosis and double pass reverse osmosis technology available
Support fresh water treatment, such as tap water, underground water, river water etc
Main components: RO membrane (USA DOW FILMTEC),
high pressure pump (CNP, Danmark Grundfos)
Electricity conductivity meter, pH meter, pressure gauge
Raw water tank and pure water tank with level sensor to monitor the levels in the tanks
Over high or over low pressure protection failities
304 Stainless steel or FRP filter tank and RO membrane housing
254nm UV lamp to kill bacteria
Ozone generator to do disinfection for pure water tank and purified water pipeline
Specification
| NOS. | Items | Information |
| 1. Pre-treatment part | ||
| 1.1 | Sand filter | Remove turbidity, SS matter, organic matter, colloid, etc. |
| 1.2 | Active carbon filter |
Remove color, free chloride, organic matter, harmful matter, etc. |
| 1.3 | Water softener | Soft water and reduce it's hardness. |
| 2. RO part | ||
| 2.1 | High pressure pump | Provide power for RO. |
| 2.2 | PP filter |
Prevent large particles, iron, dust, SS matter, impurity into RO membrane. |
| 2.3 | RO membrane |
Remves: lead, cooper, barium, chromium, mercury, sodium, cadmium, fluoride, nitrite, nitrate, and selenium. |
| 3. Electricity control system | ||
| 3.1 | PLC+Touch screen control system | Impored from SIEMENS,WeiNveiw |
| 3.2 | Electrivity components | Schneider, Chint |
| 3.3 | Pipe and fitting | Adopt domestic famous brands,UPVC/ Stainless steel material |
General Process recommended
Feed water- Feed water pump- Multimedia filter- Activated carbon filter- Softener/Scale inhibitor device- Precision filter- High pressure pump- Reverse osmosis unit- Pure water tank( ozone disinfection) - Pure water pump- UV lamp- Outlet water

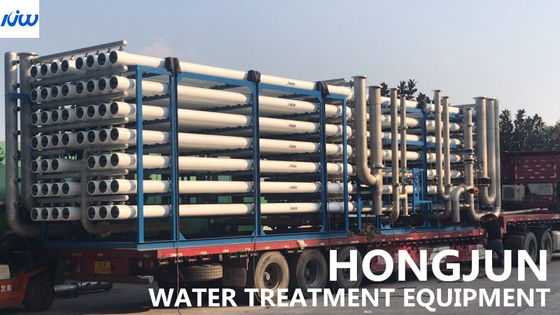

Product pictures
For electrical control cabinet, we have PLC, HMI touch screen auto control, the traditional Knob Control Panel is also available.
