|Product Name::||Portable Lake Water Filtration Mach||Treatment Process::||Flocculation&sedimentation&filtrat|
|Body Material::||Carbon Steel With Epoxy Coating||Capacity::||100 000 Liter Per Hour|
|Function::||Water Purifying||Usage::||Filter River Water To Tap Water|
industrial water treatment plant,
industrial water purification system
river rivulet stream water filtration treatment plant water small treatment plant
|Product Grouping||Integrated Purifier|
|Application||Electronic,power,photovoltaic,beverage,medicine,middle water recycling and sea water desalination,drinking|
|Features||Small install place, economy|

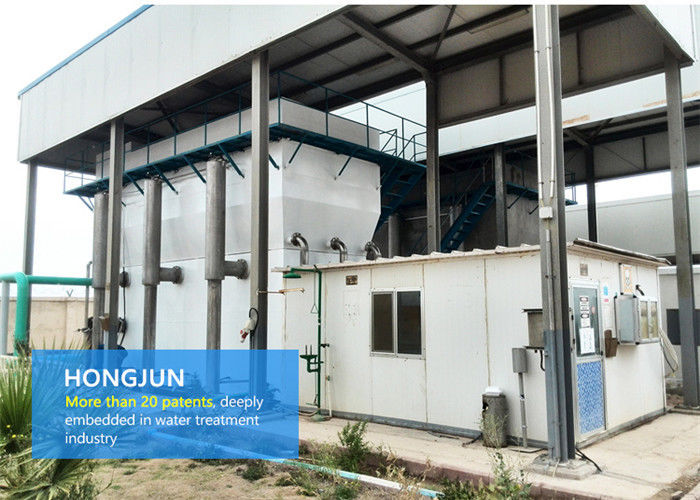

In this water purification plant, raw water is from river. At the begnning, river water will b passed through all in one sedimentation device to remove some big particles, like suspended solid, mud and sand. Then flow to mechanical filters to remove susended solid, colloid and silt. At last to activated carbon filter to remove organic matter, residual chlorine, color, odor and some impurities. All the devices above are sonsist of a perfect pre-treatment system.
The whole system could be controlled automatically by relay, water level detector, pressure transducer or manually by man power. Usually, the system is set to be controlled automatically. The system could provide pure water continuously. It's easy, safe and reliable.
2. Brief flow chat:
Chemicals dosing system:
PAC dosing device→Piping mixer
PAM dosing device→Pingping mixer
PH dosing device→Outlet from clean water tank
Bleaching powder dosing device→Outlet from clean water tank
Water Quality Compare
Inlet water/Water source: Turbidity≤3000mg/L
Product water quality; Turbidity≤3mg/L
1) Piping mixer:
Material: Stainless steel material,better corrosion resistance
Function: mixing the chemicals PAC & PAM with water
2) Reaction tank:
Material: Carbon steel
Function: Space for chemicals reacting with water,removing particles,suspended solids,etc.
3) Sedimentation tank:
Material: Carbon steel
Function: Space for flocculants sedimentation
4) Sand filter/Valveless filter:
Material: Carbon steel
Function: further purifying water.Valveless filter can backwash water automatically by gravity.
5) Clean water tank
Material: Carbon steel
Function: Final purified water will be stored here.
3. Application range:
1. This compact system can treat river water,lake water,or reservoir water,as Water Supplying Station for village,city or Water factory.
2. This system can be as pretreatment filter before pure & ultrapure water treatment system used in boiler water factory, food & beverage water factory,etc.
3. It can be used as various recycling water treatment system.
4. Technical Parameters:
Production Water Flow: 1000L/H @ 25 degree.
Water Inlet Pressure: 0.3Mpa
Inlet Conductivity: less or equal to 1000us/cm
Working Pressure: 2-3kg/cm2
Overall Power: 3KW
Power Supply: 220V/380V(3-phase, 5-wire)
1. What is lamella clarifier
Compact lemella clarifier is a comprehensive purification facility, which gather flocculation, clarification, filtration and other processes. It's convenience to purify the general ground water, river water and other sources to standard living water, mainly used in rural areas, towns, farms, army barracks, small medium enterprise and other places to imporve the living water's quality.
2. Operating Principle of Lamella Clarifier
Its process flow is much similiar with urban water factory. Includes flocculation tank, sedimentation tank, filtrtion tank, water quality sabilizing device, backwash device, pumps and electrical control cabinet. Descriptions are presented below:
Flocculation Tank: raw water with flocculants flow into flocculation tank from inlet pipe, through the agitator, suspended solids are reached with flocculants and become alum flocs.
Sedimentation Tank: Alum flocs flow to sedimentation tank, by the plate settler/lamellar, solid and liquid are separated. And sludges are discharged to the mud bucket.
Filtration Tank: After sedimentation, water flows to filtration tank. Inside the filtration tank, from bottom to top, respectively are water distributors, silica sand and anthracitic coal. Flow rate is 10m/h. Finally, water flows to the clen water tank for other usage. Usually, backwash cycle of filtration tank is about 5-10 mimutes.
Advantages of this integrative water filter:
1. Simple operation,less maintenance. From reaction tank,sedimentation to sand filter,the whole process runs automatically.The only job you need to do is inspecting the water quality & managing the pump & chemicals dosing room.
2. Compact design,need less area. Comparing with other water filter,this integrative water system can save area >50%.
3. Stable & good product water quality. This system can adapt various water temperature & turbidity,and has high-efficient flocculation reaction,so product water quality can keep stable.
4. Save water.Wasteful water <5%
5. Long lifetime It can be expanded,rebuilt or relocate.
Characteristic of Lamella Clarifier
Simple and Pracital: The main charateristic of compact lemella clarifier is simple & practical, wisely combined with hydraulics, automatic operation, less demanding on the quality of operating person. When the layer is blocked to a certain condition, it will backwash automatically. Due to no running parts, equipment failure is almost zero. System is reliable operation and easy manitenance.
Esay to Install: Lamella clarifier is made of steel. All the poduction is done in our workshop. Meanwhile, commissioning is taken before delivery so as to ensure the produc quality. When delivered to installation site, only connect the pipelines ten system can be worked at once.
Function of flocculant raction: In the design of packaged water treatment plant, we take all kind of water quality into consideration, under choosing the optimal dosing point, floculant reation is added.
Widely used in all kinds of fields: Widely used in rivers, lakes and other surface water treatment, idustrial waser water reuse, such as cycled water, cooling water, mine water and other sources to improve its utilization. Suitable for steel, power, textile printing & dyeing, chemical, chemical fiber, rubber and other industrial factories, as well as small living water factory.
Comparison of raw wate and production water
Below showed from left to right is raw water-chemical mixing water- settle water-final water
Usage of Lamella Clarifier:
Rivers, lacks, reservoirs and other surface water purification projects;
Middle water reuse;
Industrial waste water purification for mine water, coal washing water, baths, swimming pool, car wash, paper, printing and dyeing, electroplatin and other industries.
