Product Details:
|
Name: | River Water Filtering Device | Piping: | UPVC |
---|---|---|---|
Usage: | Filter River Water To Tap Water | Installation: | Foundation Mounted |
Valves: | Auto Control Valves | Capacity: | 30-100000T/D |
High Light: | 30tpd Drinking Water Purification Machine,UPVC Drinking Water Purification Machine |

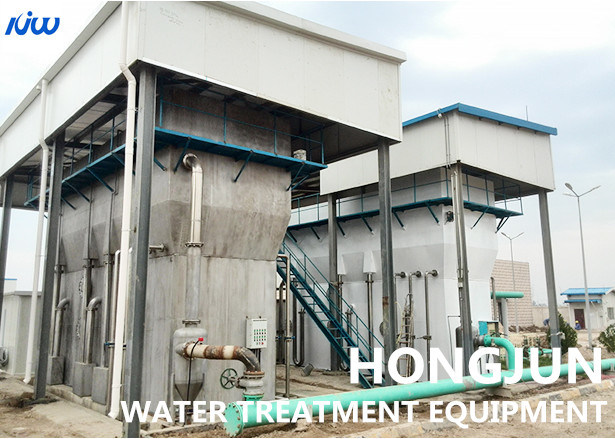

SS304 River Lake Clarification Purification Machine
Product Information |
Product Grouping | Integrated Purifier |
Applicatio | Electronic,power,photovoltaic,beverage,medicine,middle water recycling and sea water desalination,drinking |
Voltage | 220V/380V, 50HZ/60HZ |
Length | Customized |
MOQ | 1set |
Features | Small equipment,easy transportation |
scheme decision
According to the raw water source and the required treated water quality, the color and turbidity are the two target items to handle. Accordingly , filtering process is chose. Flocculation is also necessary to be used prior to filtering considering a certain turbidity in order to make sure the cleaning efficiency. Consequently, we scheme to use the process combining the flocculation and filtering .
process flow chart:
Flocculation dosing
↓
Raw water → water collecting pump→mixing pipe→integrated high-effected auto-backwashed filtering device →clean water pond →lift pump→water use point ↑
Disinfection dosing
Note: both water collecting pump and lift pump are not covered in the quote.
Detail introduction:
1) Piping mixer:
Size:630*180*180mm
Material: Stainless steel material,better corrosion resistance
Function: mixing the chemicals PAC & PAM with water
2) Reaction tank:
Size:500*1500*6000mm
Material: Carbon steel
Function: Space for chemicals reacting with water,removing particles,suspended solids,etc.
3) Sedimentation tank:
Size:2000*1500*3000mm
Material: Carbon steel
Function: Space for flocculants sedimentation
4) Sand filter/Valveless filter:
Size:1500*1700*2000mm
Material: Carbon steel
Function: further purifying water.Valveless filter can backwash water automatically by gravity.
5) Clean water tank
Size:1500*1700*1000mm
Material: Carbon steel
Function: Final purified water will be stored here.
