SS Water Purification Equipment Semi Automatic Basement Sewage Pump Laundry Water Treatment Recycle System

Semi Automatic control basement sewage pump laundry grey water treatment recycle system

Design Principles

We harshly design based on the relevant state environmental protection laws and regulations, standards, to ensure that the effluent could reach the national and local emission standards.

Under the premise of design requirements, we use the most advanced, reliable, safe, energy-saving,sanitary,low cost techniques to achieve convenient operation, management, and a stable quality of effluent.

During design the water treatment, we also consider and try best to control the discharge of secondary waste pollutions that probably cause from water treatment process, such as concentrate waste,waste gas, to protect environmental sanitation.

​

We consider in all directions to design general layout of whole water treatment plant to be reasonable, compact, and less footprint required.

Process Description

Sewage liquid water passes through a screen in grit chamber to remove all objects like large

suspended maters, hair, dross etc. before they damage sequent equipment. These objects and

floating material are removed and remaining water after achieving uniform flow rate in regulating

tank is pumped into the anaerobic tank here beginning biochemical treatment.

In the anaerobic tank water is undergoing hydrolyticacidification treatment for biological degradation

of organic materials. As partly reduces COD and BOD hydrolyticacidification increases biodegradability

of the sewage water liquid. Then outlet water go into the contact oxidation tank where, it is treated sequently by one stage and two stage contact oxidation in order to substantially degrade the biological content of the sewage which are derived from human waste, food waste, soaps and detergent.

Part of sludge and suspended materials produced in contact oxidation tank are precipitated out by

inclined tube sedimentation . Effluent is coming out from sedimentation tank and is disinfected in

effluent tank before discharge.

Sludge in sludge digestion tank is returned to anaerobic tank and pumped out regularly with truck.

Project Show:

Domestic waste water treatment: Compact MBR System - processed in our factory

uSystem design: adjustment tank-aerobic contact oxidation tank- MBR tank-clean water tank

uSystem description: Use A3 steel with rubber lining inside; control panel and stable water supply are combined in this system;the picture below shows the finished compact system loading on car

ØDomestic sewage water treatment:

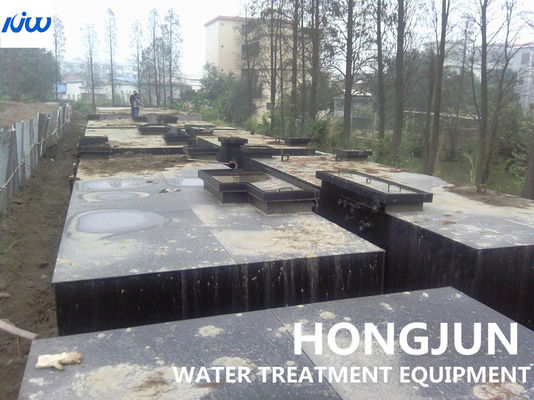

Buried type sewage water treatment device

for a local village of Foshan

u System description: Use A3 steel with epoxy inside; the picture below shows productions and installations.

Ø 20t/h Ultrafiltrtion + Reverse Osmosis System for Wastewater Recycle for

IMPUSE LTD in Australia
