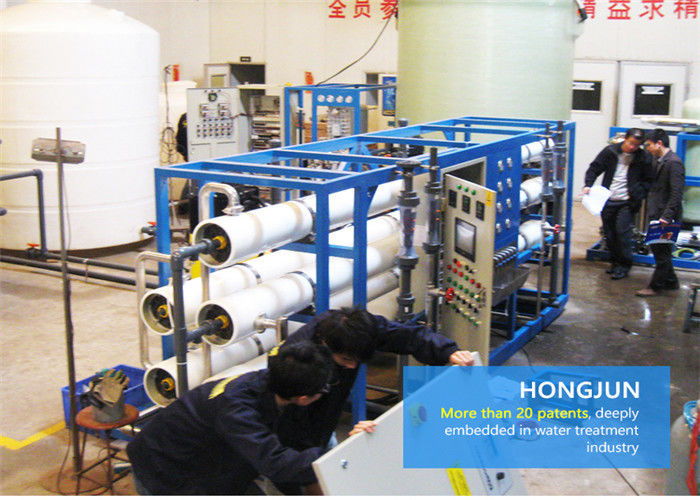

Industrial Deionized EDI Water Plant , Edi Water Treatment Plant 1 M3/Hr Capacity

Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: HJ
Certification: ISO9001/BV/GMC
Model Number: HJ R-1000 EDI-XJP
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit/Units
Price: negotiable
Packaging Details: Carton or Wooden case
Delivery Time: 7-10days after payment arrived
Payment Terms: D/A, L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability: 1000 sets per year
Contact Now

Detail Information

Capacity: 1m3/hr Raw Water: Tap Water
Outlet Water's Silica: 5~20ppb Outlet Water's Resistivity: 16~18.2MΩ.cm
Usage:: Electron Industry Water Recovery Rate: Up To 99%

Product Description

RO Plant Fitting Water Reverse Osmosis And Edi Filter System Industrial Deionized Water Systems



Product Grouping

  Containerized Purification Equipment>EDI
Applicatio Electronic,power,photovoltaic,beverage,medicine,middle water recycling and sea water desalination,drinking
Voltage 220V/380V, 50HZ/60HZ
Length Customized
MOQ 1set
Features Small equipment,easy transportation





The advantages are:

1. Continuous production,no need for acid and alkali regenerating, without the emission of acid and alkali solution

2. Stable quality of output water

3. Low woking cost,standard design

4. Compact structure

5 Convenient operation and management





Application Field:

1. semiconductoe industry

2. electronic industry

3. power plant

4. chemcial industry

5. petroleum industry

6. metallurgy industry

7. pharmaceutical indusry

8. food and beverage industry

9. pilp&paper industry

10. automatic industry and many other industries

EDI(Electrodeionization) technology scientifically combine electrodialysis with ion exchang technology and substitutes the traditional ion exchang bed technique.

specification notes working range optimum performance
feedwater source RO water , direct feed , or with intermediate break tank plus filter
EDI feed conductivity ionic load determines size of the working bed and polishing bed within the EDI 1-20us/cm 1-6us/cm
feed conductivity equivalent   less than 50us/cm less than 10us/cm
PH low ph feedwater typically indicators the presence of CO2 which will decrease quality 5.0-9.5 7.0-7.5
total CO2 Industrial Deionized EDI Water Plant , Edi Water Treatment Plant 1 M3/Hr Capacity less than 5mg/l less than 2mg/l
temperature   5℃to 40℃ 20℃to30℃
hardness Industrial Deionized EDI Water Plant , Edi Water Treatment Plant 1 M3/Hr Capacity less than 1.0ppm at 90% recovery
organics TOC less than 0.5ppm not detectable
metals Fe,Mn,transition metals less than 10ppb not detectable
silica , SiO2 typically dissolved , reactive less than 0.5ppm

less than 0.2ppm

oxidizers Cl2 and O3 typically not detectable not detectable
particles recommended direct feed particle - free RO permeate , or 1μm pre - filtration of feed from intermediate tank SDI less than 1 SDI less than 0.5



Product functional component description

1. Original water tank: liquid level controller unstable municipal water supply, with using the original water tank
storage system for water supply to meet the subsequent water use.
2. Mechanical filter: remove sand, mud, rust and other suspended solids and colloidal impurities from water. Automatic operation, washing, backwashing.
3. Full automatic activated carbon filter: the removal of organic impurities, part of the smell, removal of residual
chlorine. Automatic operation, washing, backwashing.
4. Automatic water softener: water softening, removal of the ion that is easy to form rigidity, such as Ca2+, Mg2+. Automatic operation, washing, backwashing, regeneration.
5.The salt box: filled with regeneration agent, used in water softener regeneration.
6. Security filter: remove the M >5 particles in the water to prevent clogging of the reverse osmosis membrane.
7. High pressure pump: pressure on RO reverse osmosis water
8. Fully automatic reverse osmosis
9. Pure water tank: water storage
10. Pure water pump: pressure on the water inlet. Pure water tank liquid level is higher than the high level and the ultra pure water tank liquid level is lower than the low water level, pure water pump starts.
12. Ultra pure water tank: storage of ultra pure water









Industrial Deionized EDI Water Plant , Edi Water Treatment Plant 1 M3/Hr Capacity
