Product Details:
|
| Place To Use: | Nigeria | Capacity: | 1000L/H |
|---|---|---|---|
| Housing: | FRP(Fiberglass-reinforced Plastics) | Filter Media: | Anion And Cation Exchange Resin |
| Regenerated: | Manual | Function: | Producing Ultra Pure Water |
| Valve: | Manual | Piping: | UPVC |
| Certificate: | ISO9001/BV/GMC | ||
| Highlight: | ion exchange water treatment plant,ion exchange water treatment system |
||

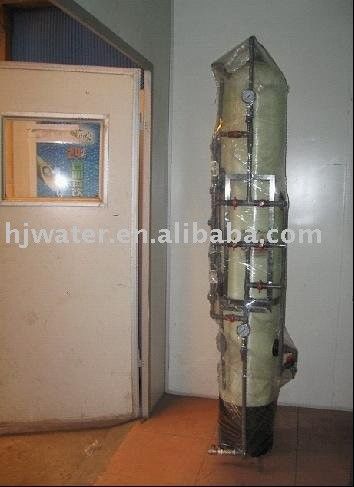

DN300mm manual FRP mix bed
Operating Principle:
Mixed bed device mix and feed anion and cation exchange resin in the same exchange at certain
proportion, when the water pass through the mixed bed, multilevel mixed bed desalination system
will be formed after several staggered arrangement of cation and anion resin.
As the cation and anion resin mix well proportioned, cation and anion resin reaction exchange almost at the same time, that is to say,
the water cation and anion exchange for several times, H+ and OH-will be generated but can not accumulated so that can eliminate the exchange reation effect of the
antiparticle as well as reverse reaction. Therefore,the quality of outlet water is good.
After losing efficacy,the cation and anion resin should be separated first, and then regenerated and
cleaned respectively.
It features high desalting rate, and the quality of output water is obviously higher than that of anion and cation exchange bed, the mixing ion exchanger is set after the anion and cation exchangers as the key equipment for producing ultra pure water
International Certificates: ISO9001:2008/BV/GMC
