20ft 40ft Ultrafiltration Mobile Water Purification Plant

20ft-40ft Ultrafiltration Mobile Water Purification Plant

Why choose containerized water system ?
Containerized plants have many advantages over built-in plant room installations:
Plug and play unit
Quick installation
Limited civil work (only container foundation)
Small foot print
Easy transportation
Mobile: useful for construction sites, emergency use
Turnkey delivery: piping, cables, lights, air conditioning
Diesel generator to provide power supply

Reverse osmosis device

Features and application scope of reverse osmosis device:
·The desalination rate is high, and bacteria, toxins and other organic matter can be removed at the same time. The effluent quality meets the national standard GBI7323-1998;
·The main part of the reverse osmosis device adopts imported American composite membrane elements and imported high-pressure stainless steel pumps. Compared with other reverse osmosis elements, it has unique advantages in terms of water inlet adaptability, salt rejection rate and service life;
·Design pressure: 1.05~1.6Mpa, desalination rate: 96~99%;
·High degree of automation, stable operation, low failure rate and low operating cost;
·Suitable for wine blending water, canned product processing water, bottled and barreled drinking water, and various beverages;
·Suitable for water preparation in electronics, chemical, electric power, pharmaceutical and other industries;
·Suitable for the treatment of high purity water.

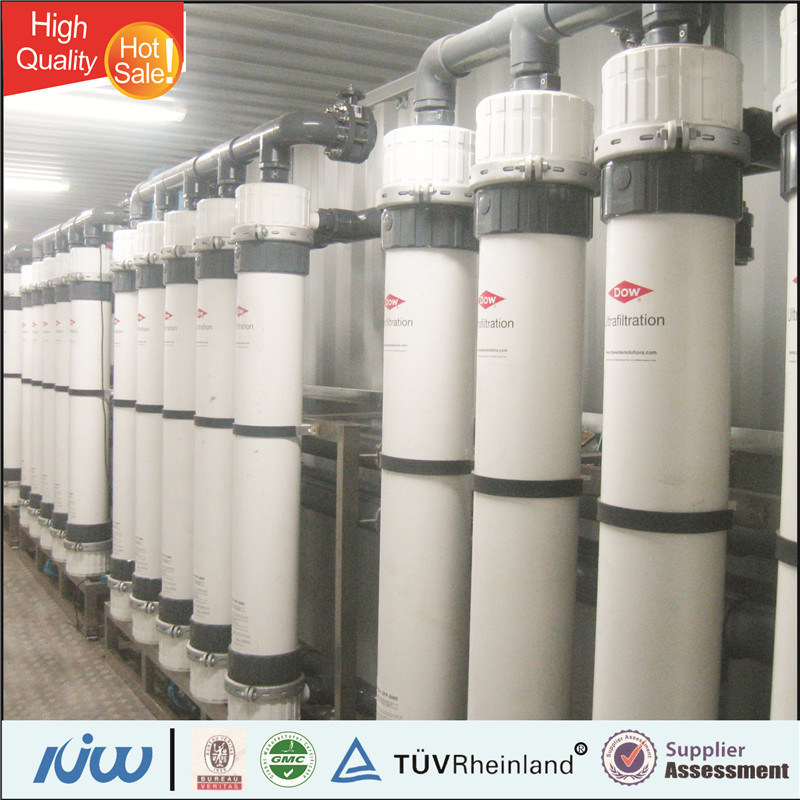

Ultrafiltration (UF) device

Ultrafiltration (UF) device is an advanced membrane separation technology. The solvent and various small solutes contained in the feed liquid pass through the filter membrane from the high pressure feed liquid side to the low pressure side, thereby obtaining the permeate or ultrafiltrate. ; The ultrafiltration membrane has a pore size of less than 0.01 microns (one hundred thousandths of a millimeter), which can effectively remove particles, colloids, bacteria, heat sources and organic matter in the water, while the solute molecules with a size larger than the membrane pore size are retained by the membrane to concentrate liquid.

Typical process flow: original liquid → storage tank → pressurized pump → precision filter → hollow ultrafiltration equipment → storage tank → backwash water tank → backwash pump

How to service

100% factory tested before shipment

One Year's Quality Warranty

1.Pre-sales Service

--General technical advice and business consultation.

--Suitable scheme and equipment as order.

--Designing as special requirement.

--Complete plan with technology and production line equipment.

2. After-sales Service

-- One year warranty.

--Inspecting equipments in every working procedure.

--Assisting foundation construction.

--Dispatching engineer to install and debug.

--Training the first-line worker on site;

--Visiting clients and solving production problem.

--Life-long maintenance service.

--Technical support.
