Product Details:
|
| Product Name: | Cartridge Filter For Water Treatment | Seal Type: | O-ring Or Flat Washer |
|---|---|---|---|
| Cartridge Quality: | 1 Core To 180 Cores | Filter Length: | 10"---40" |
| Temperature: | 5 ℃ -100 ℃ | Replace The Pressure: | 0.05Mpa-0.07MPA |
| Highlight: | ro membrane vessel,ro membrane housing |
||

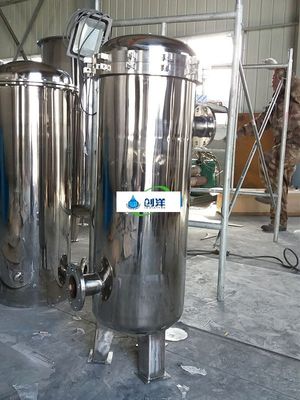

Product Name:Stainless steel beer precision water cartridge filter for water treatment
The Product Profile :
Commonly used wound filter and meltblown filter
Wound filter (also known as honeycomb filter), there are two types: one is polyp
ropylene fiber - polypropylene skeleton filtration, the maximum temperature 60 ℃; the other is cotton fiber - stainless steel frame filter, the maximum temperature 120 ℃.
Raw material of meltblown filter is polypropylene, the maximum operating temperature is 60 ℃. Sophisticated filters can remove suspended solids, colloidal substances and some fine particulate matter and so on.
Parameter of Cartridge filter:
| Working pressure: | 0.6 / 1.0 / 1.6Mpa |
| Body Material: | Stainless steel (SUS304, SUS304L, SUS316, SUS316L). |
| Operating temperature: | 5 ~ 40 ℃ (exceed 60 ℃ to be informed) |
| Design temperature: | 5 ℃ -100 ℃ |
| Replace the pressure: | 0.05Mpa-0.07MPA |
| Filter interface: | flat compression, plug-in |
| Cylinder and base connection mode: | quick opening, flanged |
| Filtration accuracy: | 1μm ~ 100μm |
| Cartridge Quantity: | 1 core to 180 cores |
| Filter Length: | 10 "~ 40" |
| Seal type: | O-ring or flat washer |
| Seal Material: | PTFE, rubber. |
|
Outside treating :
|
matte jet beads, mirror electrolytic polishing. |
| Sealing material: | nitrile rubber, silicone, Viton, standard configuration for the silicone seal. |
| Interface Type: | GB, HG, DIN, ANSI, JIS standard flanges, dental mouth, clamps and so on. |
| Flange Standard: | GB, HG, SH, HGJ, JB, ANSL, JIS and other standards. (User-specified, please indicate the pressure level) |
| Manufacturing, testing standard: | GB150 standard, or user-specified criteria. |
