Product Details:
|
| Location: | Thailand | Capacity: | 15m3/h |
|---|---|---|---|
| Technique: | Ion Exchange Technology | Function: | Reduce Hardness From Water |
| Material: | FRP(Fiberglass-Reinforced Plastics) | Filter Media: | Cationic Resin |
| Operation Mode: | Automatic | Control Valve: | Runxin/China |
| Piping Material: | UPVC | Certificate: | ISO9001/BV/GMC |
| Highlight: | ion exchange water treatment system,ion exchange ro water purifier |
||

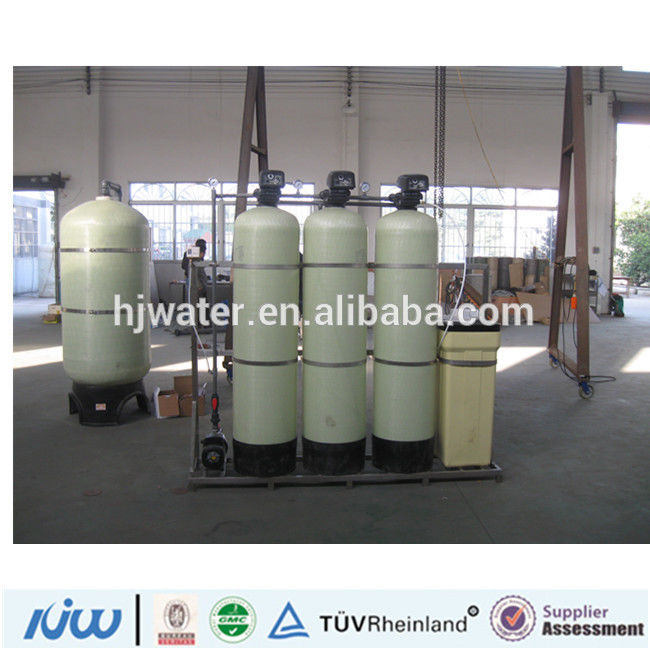

remove hardness automatic water softener/scale filter
Applications:
1. Feed water of steam boiler, hot water boiler exchanger,evaporative condenser,air conditioner ect.
2. Domestic water of hotel, restaurant, office building, apartment ect;
3. Water softening for food and beverage, brewing, washing, printing, chemical and medicine ect.
Working process includes:
| Step 1 | Exchange Softening |
| Step 2 | Backwashing |
| Step 3 | Salt Feeding |
| Step 4 | Resin Regenerating |
| Step 5 | Fast Rinse |
Operating Principle:
Multimedia filter and activate carbo filter are pre-treatment filters which is done by filter media (quartz sand, activate carbon, gravel, anthracite..etc) to purify raw water first then enter into water softener.
As Calcium and Magnesium are the main substances for the hardness water. In order to exchange Ca2+, Mg2+(main component of scale), cation exchanger (softener) is needed. After running for a long time, resin shall be regenerated by sodium chloride(NaCl).
Reaction equation of softening (R is resin):
2RNa+Ca2+=R2Ca+2Na+ 2RNa+Mg2+=R2Mg+2Na+
Reaction equation of regeneration:
R2Ca+2NaCl=2RNa+CaCl2 R2Mg+2NaCl=2RNa+MgCl2
Flow chart:
Discription:
1.In order to cut down the cost, can change into manual control system.
2.If the device run for 24 hours continuously, can choose two sets alternately, one for spare one
for operating.
3.According to the outlet water's quality, can add some device before water softener.
Like Multimedia Filter(effectively remove sand, iron rust, colloid and seston) and Active Carbon Filter
(effectively remove remained chlorine and pesticides as well as pigment, odor, organice).
4.Outlet water's quality can reach state standard of low pressure boiler water.
Technical parameter:
| water inlet pressure | 0.18-0.6Mpa |
| raw water's hardness | <8mmol/L |
| outlet water's hardness | ≤0.03mmol/L |
| ways of regeneration | downstream/upstream |
| ways of control | time/capacity |
| voltage | 220V/50Hz |
| Tempreture | 1-55°C |
| ways of operation | automatic/manual |
| regenerant | NaCl |
| exchanger | 001*7highlyacid resin for ion exchange |
We use standard export packing ways to avoid cargo damage during shipment.
Shipping: we supply shipping service and all kinds of certificate, eg.:CO, F/A, F/F....and so on.
Project design:
We can design any project of the water treatment to meet the demands of our clients, considering both the quality of the raw water and the desired standard of the treated water.
Supply overseas commissioning:
System will be pre-testing before delivery. Operation manual will be provided as well. If technicans still require at installation site, all costs involved, including visa fee, air ticket, accommodation costs, etc, are paid by buyer. In addition, each technician should be paid salary every day.
Foshan Hongjun Water Treatment Equipment Co.,Ltd - Water Treatment Professor
Our philosophy is "Usig the most advanced technology, provide the highest quality enginering and the best service at most reasonale price".
We look forward to cooperating with you.
Choose us: You choose professional! You choose the rest assured!
Exhibition:
Company Qulification & Certification:
Customer Testimonials:
Contact Person: Ms. Candie Liang
Tel: +8618823149433
